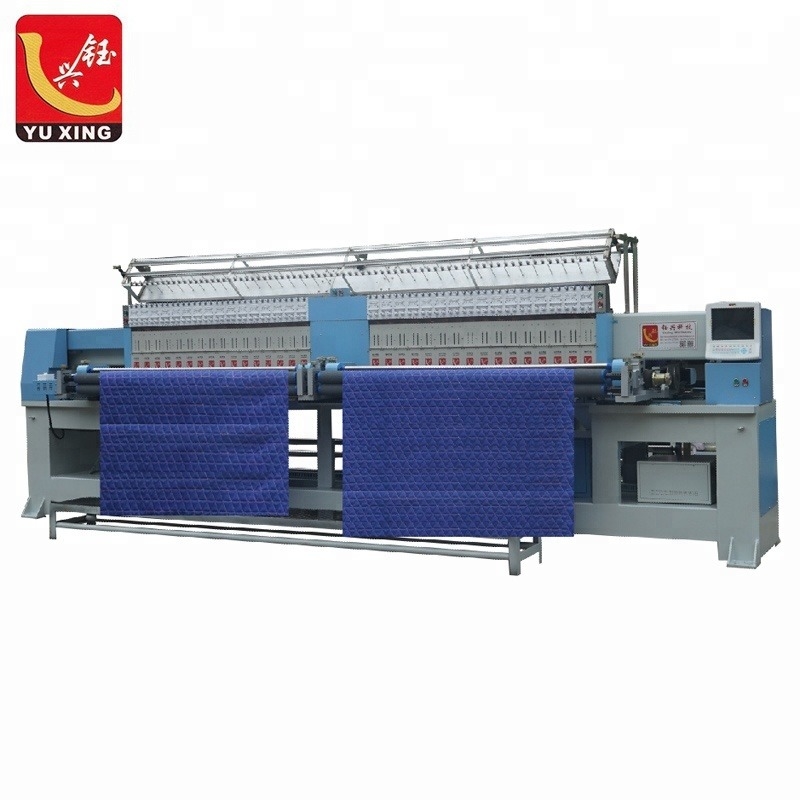

Embroidery Sewing Machine Embroidery Quilting Machine Industrial Sewing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Condition: | New | Place Of Origin: | China |
|---|---|---|---|
| Brand Name: | YUXING | Model Number: | YXH-1-1-50.8 |
| Operation: | Computerized | Head Number: | Other |
| Needle Number: | 33 Pieces | Overall Dimensions: | 5400*1400*2000 |
| Head Interval: | 50.8 | Embroidery Area: | 3352 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Size L*W*H: | 5400*1400*2000 |
| Weight: | 3000kg | Quilting And Embroidery Width: | 3352mm |
| Needle Space: | 50.8 | X-axis Movement: | 260mm |
| Quilting Thickness: | 20-600gsm | Certification: | CE&ISO |
| Warranty: | One Year | Pattern Storage Capacity: | 960 Pieces |
| Rolling Speed: | 300-850r/min |
embroidery sewing machine / industrial sewing machine Functions
1. Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function. Compatible with the general embroidery machine function and embroidery machine plate reading function in the same industry.
2. Precision finishing, and no need to modify the pattern, the difference between the finished pattern with the computer-ready patterns is tiny.
3. Advance computer control and mechanical manufacturing technology, to ensure that the noise of the machine is very small...
4. The head of quilting and embroidery machine has a simple structure, reliable performance and easy maintenance features.
5. Taking the big rotating shuttle, the max high speed can reach 850r/min.
6. Saddling rack, roller and principal motors are driven by servo equipment.
7.360 quilting and embroidery, limitless multi-span and independent quilting and embroidery.
8. Stitch can be adjusted and pattern compensation function, an effective solution for graphical variant when quilting and embroidery thick material.
Auto-stop system when thread is broken, auto and manual fill-stitch function.
10. Automatic lubrication system.
1. Unique quilting and embroidery drawing and plate making function, and immediately drawing and proofing efficient function. Compatible with the general embroidery machine function and embroidery machine plate reading function in the same industry.
2. Precision finishing, and no need to modify the pattern, the difference between the finished pattern with the computer-ready patterns is tiny.
3. Advance computer control and mechanical manufacturing technology, to ensure that the noise of the machine is very small...
4. The head of quilting and embroidery machine has a simple structure, reliable performance and easy maintenance features.
5. Taking the big rotating shuttle, the max high speed can reach 850r/min.
6. Saddling rack, roller and principal motors are driven by servo equipment.
7.360 quilting and embroidery, limitless multi-span and independent quilting and embroidery.
8. Stitch can be adjusted and pattern compensation function, an effective solution for graphical variant when quilting and embroidery thick material.
Auto-stop system when thread is broken, auto and manual fill-stitch function.
10. Automatic lubrication system.
11. Machine head can be chosen randomly for quilting and embroidery.
Core machine parts
Core machine parts
Product specification(unit: mm)
| machine type | model | head quantity | needle space | minimum processing area | needle head | length | width | height |
| double needle controlling | YXH-1-2-50.8 | 33 | 50.8 | 3454 | 2 | 5400 | 1400 | 2000 |
| single needle controlling | YXH-1-1.50.8 YXH-1-1-67.5 | 33 25 | 50.8 67.5 | 3454 | 1 | 5400 | 1400 | 2000 |
| parameter | YXH-1-1-50.8 |
| size:l*w*h | 5400*1400*2000 |
| weight | 3000kg |
| quilting and embroidery width | 3352 |
| needle space | 50.8 |
| X-axis movement | 260 |
| head quantity | 33 pieces |
| rotation shuttle | big rotating shuttle |
| quilting thickness | 20-600g |
| stitch | binary system:0.15-12.7 |
| needle storage capacity | 120.000 stitches |
| pattern storage capacity | 960 pieces |
| rolling speed | 300-850r/min |
| needle type | #14#16 |
| principal drive | servo motor drive |
| rated voltage | 380v/50hz 220v/60hz |
| power | 6.5kw |
It's used forgarments,sleeping bags,quilts,bedspread and all kinds of cushion etc.
patterns collection
remark:there are 960 species in the computer,client can edit what you what
Company Information
our company is specialized in manufacturing computerized multi-needle quilting machine,computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding machine,more than ten kinds of products.
We always insist" Quality first,customer first,credit management,credit-oriented" purposes,in the highly competitive market conditions.we firmly believe high quality and good service are the best
Our Services
To reassure our customer, we provide one year guarantee to meet concerns, within warranty, customer will get free new parts for replacement. Technician is always available via online assistance, we'll engage in solving every problem comes to us in quick fashion. In our concept, customer is entitled to have a robust machine accomplishing its task successfully free from any worries, high quality and good service is our best repay for customer's trust and confidence.
1) Within a year
A. If machine parts are broken, we can send the needed parts to our customer for free.
B.We can provide the installation, commissioning and training service in customer's
factory, while customer needs to pay for VISA application, flight ticket, accommodation, USD100/day/person as labor fee
2) After one year
A. If machine parts are broken, there will be a charge for the required parts.
B. If need to send our technician to customer's factory for maintenance, Customer should pay USD100/day/person as service charge, include the fee of VISA application, flight ticket, accommodation
To get the most value of Yuxing machine, you may send your technician to our factory, we provide free training + food + bed until they grasp all the skills
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping,the goods can be shipped 20 days after receiving advance payment
